iQ PRO Eco
Closed wall with environmentally friendly ECOR® panels
The iQ PRO Eco is a double-walled closed partition with Enabling co-Creation, co-Operation, co-Resposibility (ECOR® ) panels. An environmentally friendly and Cradle to Cradle certified sheet material that has high noise values. The iQ PRO Eco is extremely suitable for room dividing walls where high demands are made on durability and sound insulation.

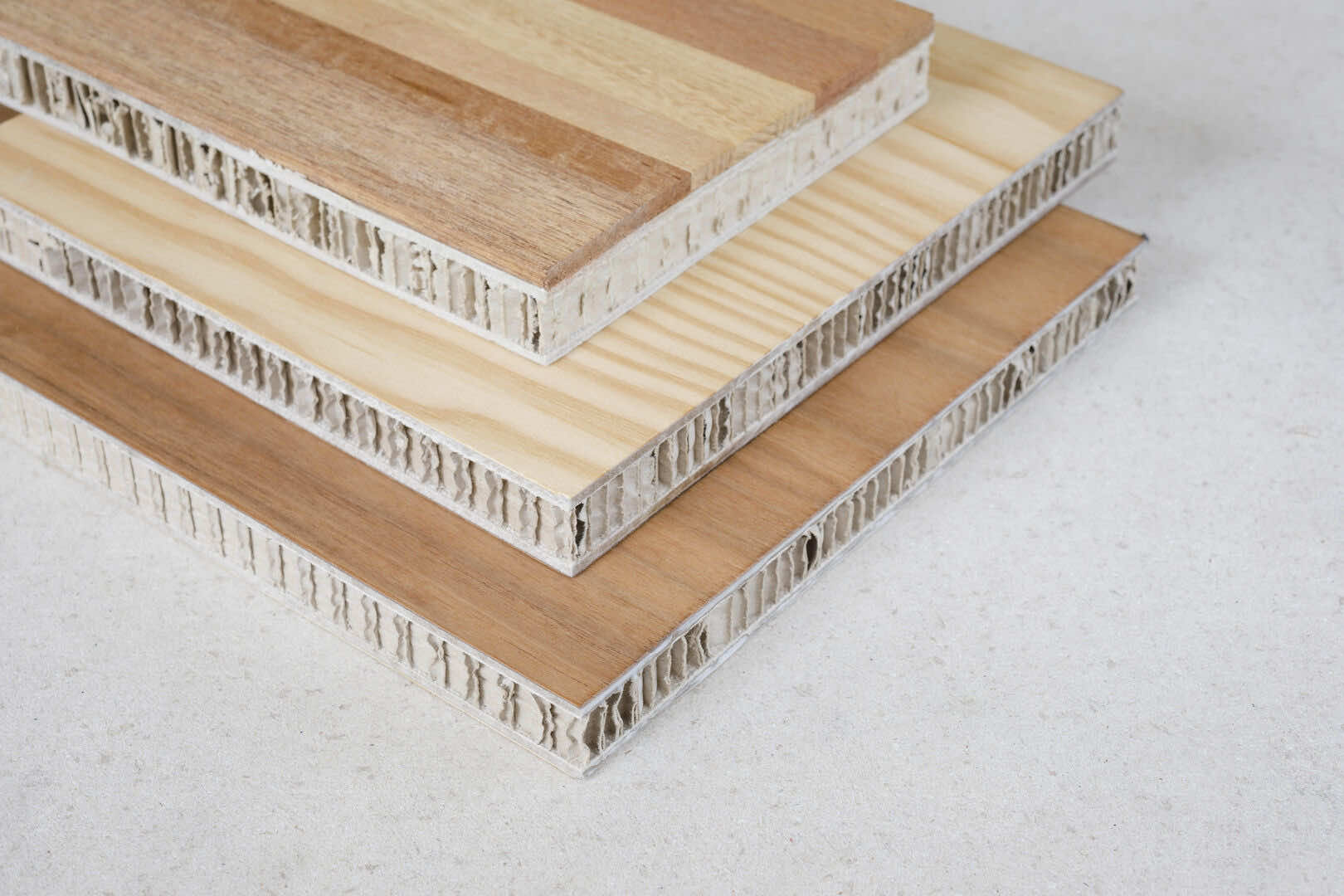

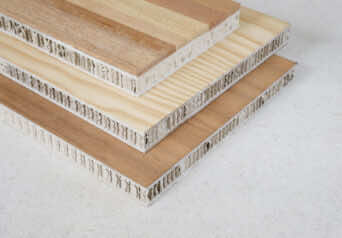

The ECOR® wall panels are made of elephant grass, a biobased material that absorbs 18 times more CO2 than a tree. ECOR is a cellulose material that holds the elephant grass together as a bio-based glue.
The aluminum profiles are only 33 mm all around in view. Available in wall thickness of 100 mm.
The iQ PRO Eco can be perfectly combined with transparent glass partition such as iQ Single, iQ Structural or iQ PRO Glass. Also with closed panels from the iQ PRO series such as iQ PRO Steel and iQ PRO Stud.
iQ PRO Eco |
|
| Description | Closed wall with environmentally friendly ECOR® panels |
| Wanddikte | 3.93"(100 mm). |
| Section panels | ECOR® panels made of elephant grass. |
| Sections modulation | 47.24" (1200mm), project specific dimensions possible. |
| Section Joins | Flat strip 1.3" (31 mm) and/or v-joint. |
| Head Track | Flat, aluminium, 1.3" (33 mm) high, optional with integrated picture rail |
| Floor Track | Flat, aluminium, 1.3" (33 mm) high. |
| Door Frames | Aluminium block frame with single and/or double rabet. |
| Doors | • Aluminum frame doors with acoustic laminated glass. • Flush and full flush doors. • Full tempered glass. • Wooden doors with an HPL or veneer finish. • Closed steel doors. |
| Colors profiles | RAL color gloss level 30% or 70%. |
| Color panels | Project specific. |
| Sound insulation | Tot Rw 60 dB. |
|
