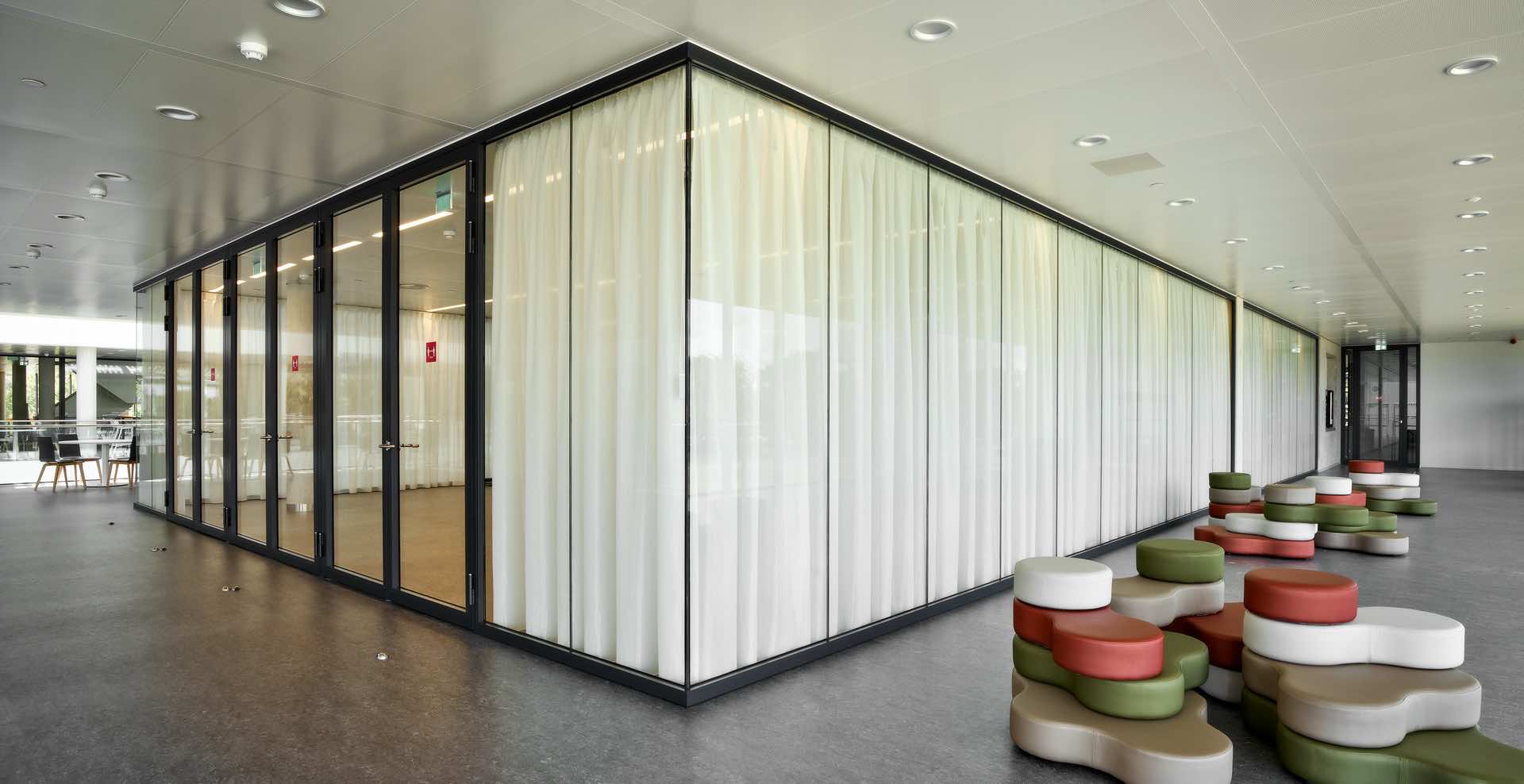

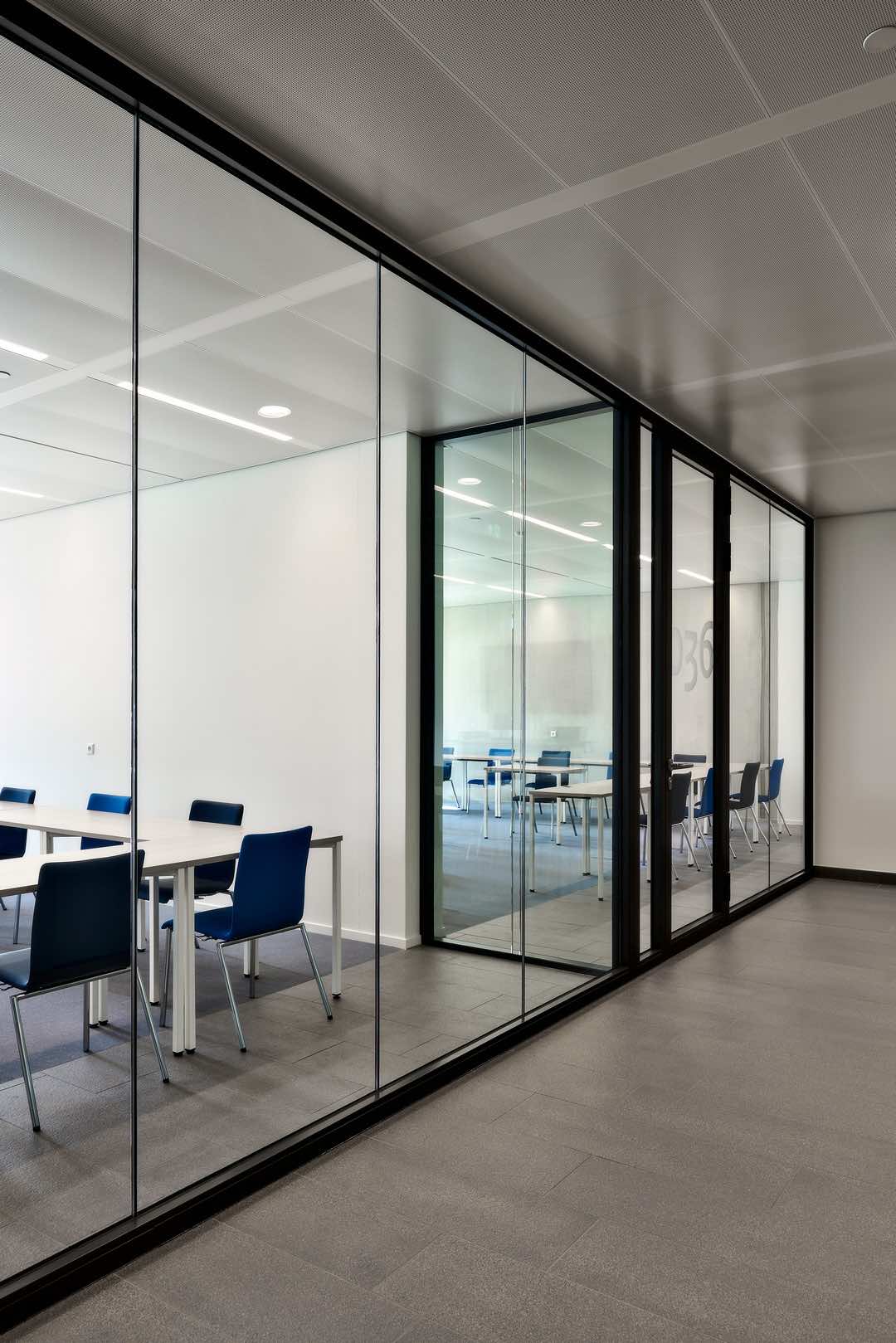

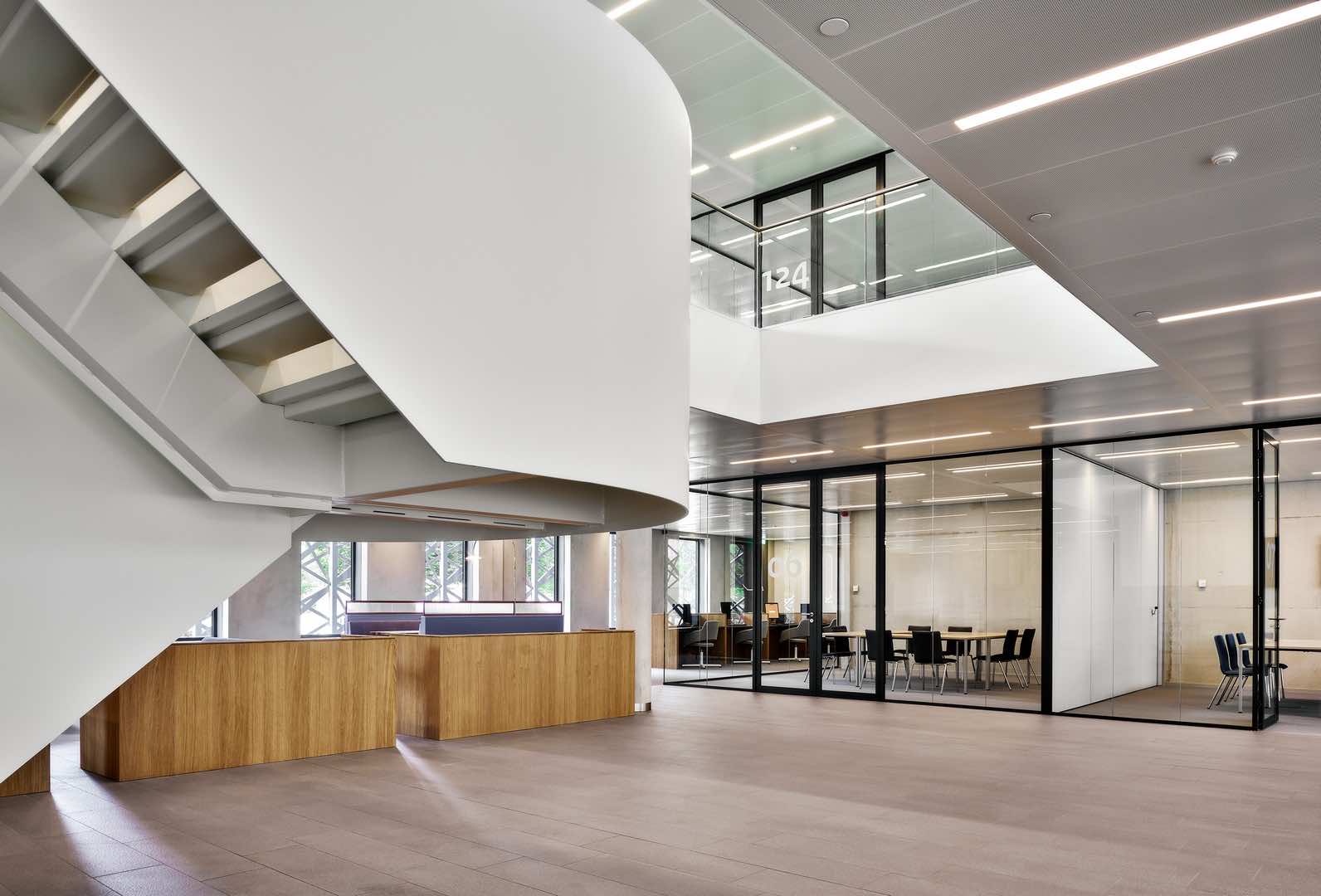

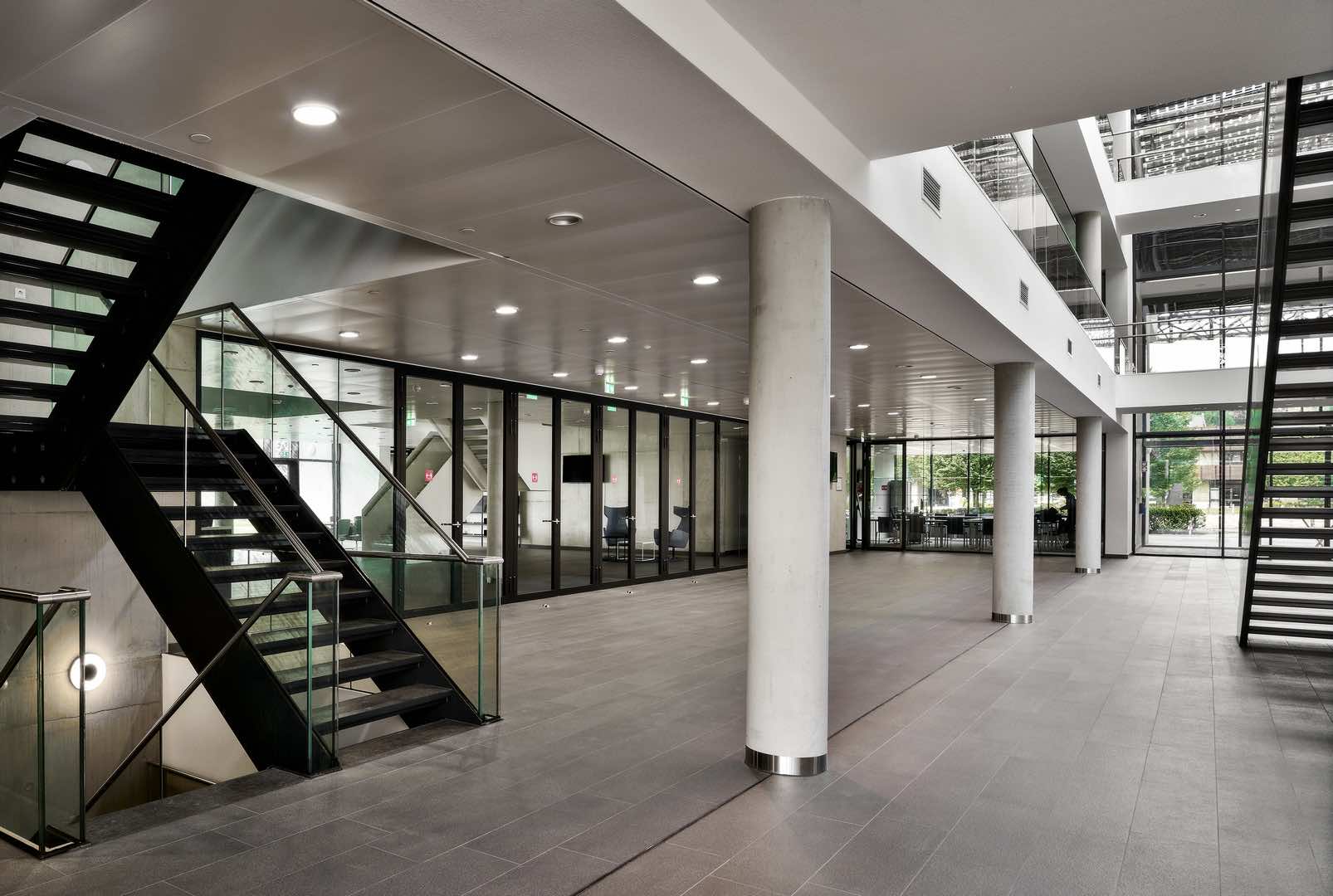

In the Education, Training and Knowledge Centre of the Royal Netherlands Marechaussee at the Koning Willen III Barracks in Apeldoorn, we not only installed the QbiQ system walls but also all fire-resistant walls with EW30 and EI30 classifications. The fire-resistant walls are executed with a transparency 0-joint between the glass panels which creates a feeling of space and freedom. Specially designed fire-resistant walls with high acoustic properties were also applied for this project so that sounds from one room do not get into the adjacent ones.
Partition Thickness |
variating from 20 to 100mm |
Glazed Sections |
project specifically up to 900mm |
Clad Sections |
project specifically up to 900mm |

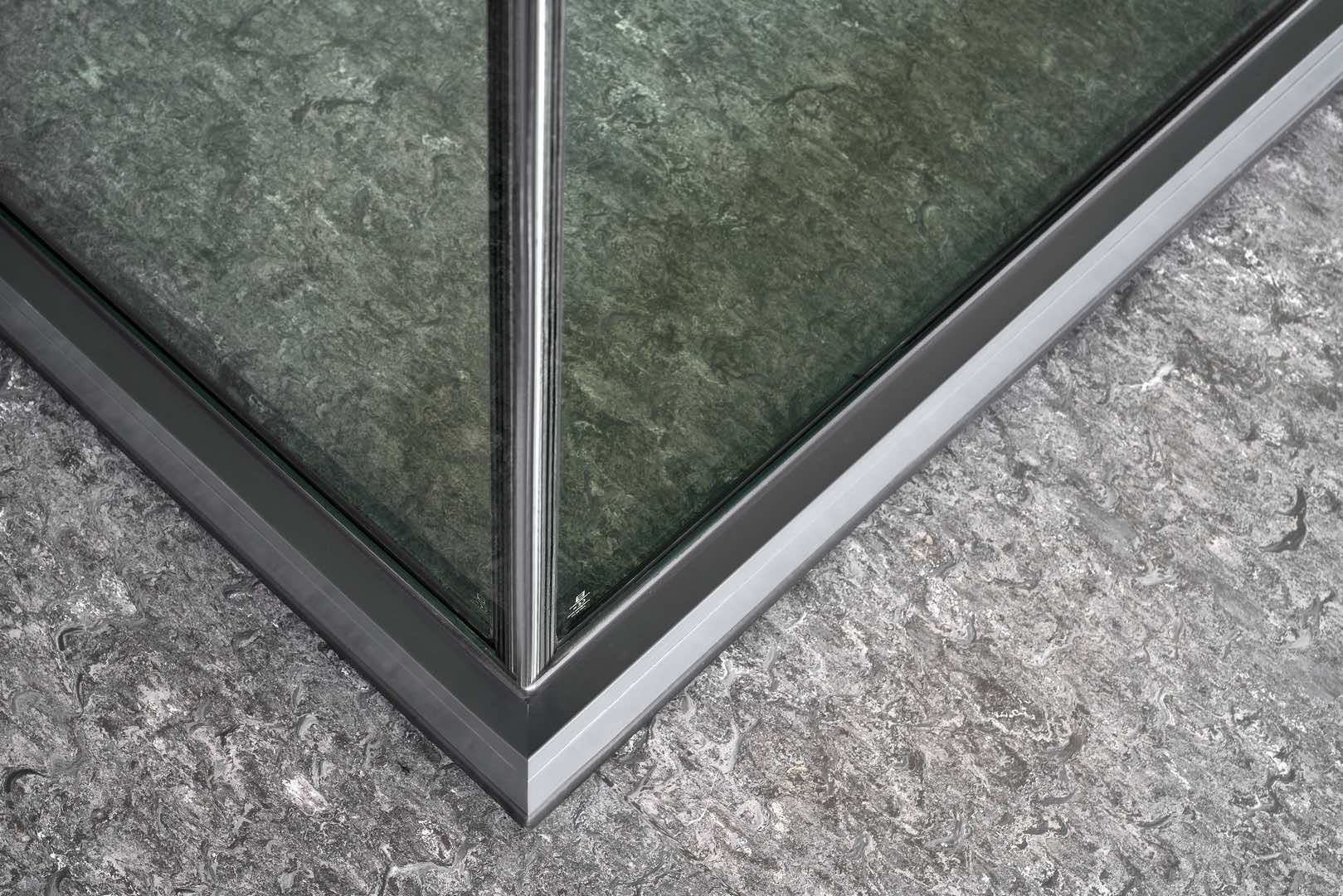

Section Joins |
transparent 0-joint |
Floor Track |
aluminim 33mm for partitions and 60mm steel for fire-resistant walls |
Door Frames |
aluminum DK58 for partitions and 60mm steel for fire-resistant walls |
Doors |
aluminum KDET framed doors for partitions and 60mm steel for fire-resistant walls |
Hinges |
stainless steel for partitions and steel for fire-resistant walls |
profielen |
U3320, DK58, KDET for partitions 60mm steel fire-resistant walls |
Glazing |
acoustically laminated 6.6.a.2 for the system walls for system walls and 16 to 24mm Pyrobel for fire-resistant walls |
